特点

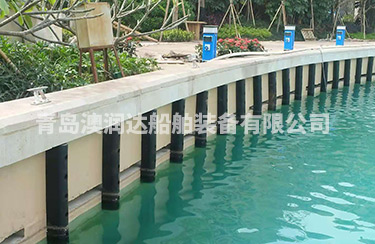

DO型橡胶护舷是D型橡胶护舷的改良产品，护舷可双排锚固，安装强度大大增加，可以与其他护舷体细并排使用，保护船和码头。
尺寸 单位：mm
|
型号
Model
|
D
|
E
|
F
|
H
|
M
|
I
|
L
|
|
GD280H×1000L
|
540
|
430
|
40
|
280
|
M30
|
40
|
300
|
|
GD280H×1500L
|
540
|
430
|
40
|
280
|
M30
|
40
|
300
|
|
GD280H×2000L
|
540
|
430
|
40
|
280
|
M30
|
40
|
300
|
|
GD280H×2500L
|
540
|
200
|
40
|
280
|
M30
|
40
|
300
|
|
GD280H×3000L
|
540
|
430
|
40
|
280
|
M30
|
40
|
300
|
|
GD300H×1000L
|
600
|
490
|
40
|
300
|
M36
|
40
|
360
|
|
GD300H×1500L
|
600
|
490
|
40
|
300
|
M36
|
40
|
360
|
|
GD300H×2000L
|
600
|
490
|
40
|
300
|
M36
|
40
|
360
|
|
GD300H×2500L
|
600
|
490
|
40
|
300
|
M36
|
40
|
360
|
|
GD300H×3000L
|
600
|
490
|
40
|
300
|
M36
|
40
|
360
|
性能表
|
型号
Model
|
反力
Reaction （KN）
|
吸能量
Energy Absorption (KN-M)
|
|
GD280H×1000L
|
375
|
14
|
|
GD280H×1500L
|
565
|
21
|
|
GD280H×2000L
|
750
|
28
|
|
GD280H×2500L
|
940
|
35
|
|
GD280H×3000L
|
1130
|
42
|
|
GD300H×1000L
|
450
|
18
|
|
GD300H×1500L
|
675
|
27
|
|
GD300H×2000L
|
900
|
36
|
|
GD300H×2500L
|
1125
|
45
|
|
GD300H×3000L
|
1350
|
54
|
更多技术支持请致电客服中心：0532-85522886
